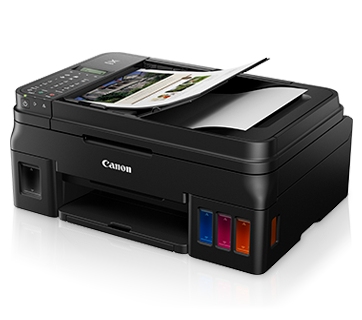

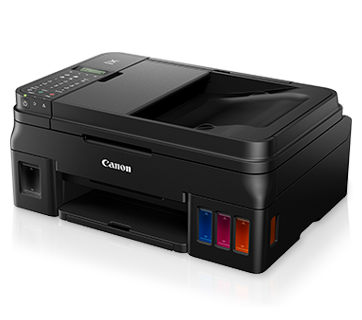

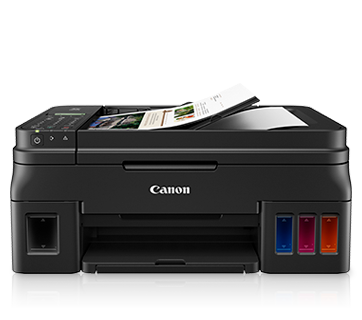

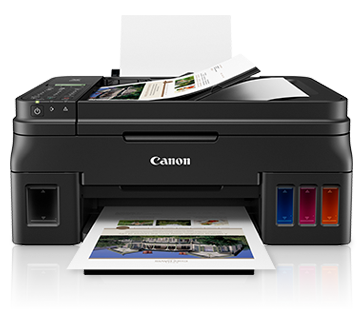

Canon G4010 Color All in One Ink Tank Printer (PSC|F|A|W)

15350 HSN:84433100

Canon G4010 Color All in One Ink Tank Printer (PSC|F|A|W) 15350 HSN:84433100

Refillable Ink Tank Wireless All-In-One with Fax for High Volume Printing

Designed for high volume printing at low running cost
  • Print, Scan, Copy and Fax
  • ISO Standard print speed (A4): up to 8.8ipm (mono) / 5.0ipm (colour)
  • Photo Speed (4 x 6"): 60sec. (borderless)
Printer
Maximum Printing Resolution4800 (horizontal)*1 x 1200 (vertical) dpi
Print Head / InkNumber of Nozzles:Total 1,472 nozzles
Ink BottlesGI-790 (Black, Cyan, Magenta, Yellow)
Print Speed*2
Based on ISO / IEC 24734

Document: ColESAT / SimplexApprox. 5.0ipm
Document: B / WESAT / SimplexApprox. 8.8ipm
Document: ColFPOT Ready/SimplexApprox. 17secs.
Document: B / WFPOT Ready/SimplexApprox. 11secs.
Document: ColFPOT Sleep/SimplexApprox. 22secs.
Document: B / WFPOT Sleep/SimplexApprox. 14secs.
Photo (4 x 6")PP-201 / BorderlessApprox. 60secs.
Printable WidthBordered:Up to 203.2mm (8 inch)
Borderless:Up to 216mm (8.5 inch)
Printable AreaBorderless Printing*3Top / Bottom / Right / Left margin: each 0mm (Supported Paper Size: A4 / Letter / 4 x 6" / 5 x 7" / 8 x 10" / Square (5 x 5") / Business Card)
Bordered PrintingTop margin: 3mm,
Bottom margin: 5mm,
Left / Right margin: each 3.4mm
(Letter / Legal: Left: 6.4mm, Right: 6.3mm)
Recommended Printing AreaTop margin:31.2mm
Bottom margin:32.5mm
Paper SizeA4, A5, B5, Letter, Legal, 4 x 6", 5 x 7", 8x 10", Envelopes (DL, COM10), Square (5 x 5"), Business Card, Custom size (width 55 - 215.9mm, length 89 - 676mm)
Paper Handling (Rear Tray)
(Maximum Number)
Plain PaperA4, A5, B5, Letter = 100, Legal = 10
High Resolution Paper (HR-101N)A4, Letter = 80
Photo Paper Plus Glossy II (PP-201)A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10, Square (5 x 5") = 20
Photo Paper Pro Luster (LU-101)A4, Letter = 10
Photo Paper Plus Semi-Gloss (SG-201)A4, Letter = 10, 4 x 6" = 20, 5 x 7", 8 x 10" = 10
Matte Photo Paper (MP-101)A4, Letter = 10, 4 x 6" = 20
EnvelopeEuropean DL / US Com. #10 = 10
Glossy Photo Paper "Everyday Use" (GP-508)A4 = 10, 4 x 6" = 20
Photo Paper Plus Glossy II (PP-208)A4, 4 x 6" = 10
Photo StickerPS-108, PS-308R, PS-208, PS-808 = 1
Paper WeightRear TrayPlain Paper: 64 - 105g/m2, Canon specialty paper: max paper weight: approx. 275g/m2 Photo Paper Plus Glossy II (PP-201)
Ink End SensorDot count
Print Head AlignmentManual
Scan*4
Scanner TypeFlatbed
Scanning MethodCIS (Contact Image Sensor)
Optical Resolution*5600 x 1200dpi
Scanning Bit Depth (Input / Output)Grayscale:16 / 8-bit
Colour:48 / 24-bit (RGB each 16 / 8-bit)
Line Scanning Speed*6Grayscale:1.5ms/line (300dpi)
Colour:3.5ms/line (300dpi)
Maximum Document SizeFlatbed:A4 / Letter (216 x 297mm)
ADF:A4 / Letter / Legal
Copy
Maximum Document SizeA4 / Letter
(ADF: A4, Letter, Legal)
Compatible MediaSize:A4 / A5 / B5 / Letter / Legal / 4 x 6" / 5 x 7" / Business Card
Type:Plain Paper
Photo Paper Plus Glossy II (PP-201)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus semi-gloss (SG-201)
Glossy Photo Paper "Everyday Use" (GP-508)
Matte Photo Paper (MP-101)
Photo Paper Plus Glossy II (PP-208)
Image Quality3 positions (Draft, Standard, High)
Density Adjustment9 positions, Auto intensity (AE copy)
Copy Speed*7
Based on ISO / IEC 24734.

Document: Colour
sFCOT / Simplex
Approx. 24secs.
Document: Colour
sESAT / Simplex
Approx. 3.5ipm
Document (ADF): Colour
ESAT/Simplex
Approx. 2.5ipm
Document (ADF): B/W
ESAT/Simplex
Approx. 8.0ipm
Multiple CopyBlack / Colour:Max. 99 pages
Fax
TypeDesktop Transceiver (Super G3 / Colour Communication)
Applicable LinePSTN (Public Switched Telephone Network)
Transmission Speed*8Blackapprox. 3secs. (33.6kbps)
Colourapprox. 1min. (33.6kbps)
Fax ResolutionBlack8 pels/mm x 3.85 lines/mm (Standard)
8 pels/mm x 7.7 lines/mm (Fine)
300 x 300dpi (Extra Fine)
Colour200 x 200dpi
Print SizeA4, Letter, Legal
Scanning Width208mm (A4), 214mm (LTR)
Modem SpeedMaximum 33.6kbps (Automatic fall back)
CompressionBlackMH, MR, MMR
ColourJPEG
GradationBlack256 levels
Colour24-bit Full colour (RGB each 8-bit)
ECM (Error Correction Mode)ITU-T T.30 compatible
Automatic DialingGroup DialingMax. 19 locations
Transmission / Reception Memory*9Approx. 50 pages
PC Fax
TypeWindows: Available, Mac: Available
Destination Number1 location
Black / ColourB / W transmission only
Network
ProtocolTCP / IP
Wireless LANNetwork Type:IEEE 802.11n / IEEE 802.11g / IEEE 802.11b
Frequency Band:2.4GHz
Channel*10:1 - 13
Range:Indoor 50m (depends on the transmission speed and conditions)
Security:WEP 64 / 128-bit, WPA-PSK (TKIP / AES), WPA2-PSK (TKIP / AES)
Direct Connection (Wireless LAN)Available (AP Mode only)
Printing Solutions
Apple AirPrintAvailable
Layout1-up (bordered / borderless*12)Letter, A4, 4 x 6", 5 x 7", 8 x 10", Square 5 x 5", Business card
1-up (bordered only)A5, B5, Legal, #10 Envelope, DL Envelope, Custom size
Print Quality*11Standard / High
MopriaAvailable
Google Cloud PrintAvailable
Smart Device Print Plug-In
(for Android / Amazon device)
Available
PIXMA Cloud LinkFrom smartphone or tablet:Available
Canon PRINT Inkjet / SELPHY App
(for iOS / for Android)
Canon Easy-PhotoPrint
(for Windows RT)
Available
Layout1-up (bordered / borderless*12)Letter, A4, 4 x 6", 5 x 7", 8 x 10", Square 5 x 5", Business card
1-up (bordered only)A5, B5, Legal
Print QualityFixed
System Requirements

Windows:Windows 10, Windows 8.1, Windows 7 SP1
Macintosh:Mac OS X v10.10.5 ~ v10.11, Mac OS v10.12
General Specifications
Operation PanelDisplayFull dot
Language32 Languages Selectable: Japanese /
English (mm & inch) / German /
French / Italian / Spanish / Dutch /
Portuguese / Norwegian / Swedish /
Danish / Finnish / Russian / Czech /
Hungarian / Polish / Slovene /
Turkish / Greek / Simplified Chinese /
Traditional Chinese / Korean /
Indonesian / Slovakian / Estonian /
Latvian / Lithuanian / Ukrainian /
Romanian / Bulgarian / Croatian /
Vietnamese
ADFPaper Handling (Plain Paper)A4, Letter = 20, Legal = 5
InterfaceUSB 2.0 Hi-Speed
Paper Output TrayA4, Letter = 50, Legal = 10
Operating Environment*13Temperature:5 - 35°C
Humidity:10 - 90% RH (no dew condensation)
Recommended Environment*14Temperature:15 - 30°C
Humidity:10 - 80% RH (no dew condensation)
Storage EnvironmentTemperature:0 - 40°C
Humidity:5 - 95% RH (no dew condensation)
Quiet ModeAvailable
Acoustic Noise (PC Print)*15Plain Paper (A4, B/W)Approx. 53.5dB(A)
PowerAC 100 - 240V; 50 / 60Hz
Power ConsumptionConnection to PCUSB
OFF:Approx. 0.2W
Standby (scanning lamp is off):
(USB connection to PC)
Approx. 0.9W
Standby (all ports connected, scanning lamp is off)Approx. 1.6W
Copying*16Approx. 10W
Typical Electricity Consumption (TEC)*17

0.1kWh

EnvironmentRegulation:RoHS (EU, China)*, WEEE (EU)*
*To be fixed
Eco-Label:Energy Star*
*To be fixed
Dimension (W x D x H)Factory configurationApprox. 445 x 330 x 197mm
Output / ADF trays extendedApprox. 445 x 526 x 249mm
Weight

Approx. 7.3kg

Specifications are subject to change without notice.
*1Ink droplets can be placed with a pitch of 1/4800 inch at minimum.
*2Document print speeds are the averages of ESAT in Office Category Test for the default simplex mode, ISO / IEC 24734.
Photo print speed is based on the default setting using ISO / JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer.
Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
*3Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer, Photo Stickers.
*4TWAIN driver (ScanGear) is based on the TWAIN specification V1.9 and requires the Data Source Manager comes with the operating system.
*5Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
*6The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included.
*7Copy speeds are the average of sFCOT and sESAT, ISO / IEC 29183.
Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warm up time.
*8Black & white document fax transmission speed is based on default setting using ITU-T No.1 chart.
Colour document fax transmission speed is based on default setting using Canon Color Fax Test Sheet.
Actual transmission speed may vary depending on document complexity, fax settings at receiving end, and line conditions etc.
*9Page count is based on ITU-T No.1 chart or Canon FAX Standard Chart No.1.
*101-11 in US, CND, LTN, BRA, TW and HK.
*11Resolution may be changed between Direct print and printing from PC.
*12The amount of image extension beyond the paper cannot be adjusted.
*13The performance of the printer may be reduced under certain temperature and humidity conditions.
*14For the temperature and humidity conditions of papers such as photo paper, refer to the paper's packaging or the supplied instructions.
*15Acoustic Noise is measured based on ISO 7779 standard.
*16Copy:When copying ISO / JIS-SCID N2 (printed by inkjet printer) on A4 size plain paper using default settings.
*17Typical Electricity Consumption (TEC) value: TEC value was calculated assuming the unit will be constantly switched among operational mode, sleep mode, and power-off mode for 5 days, and that it will be either in sleep or power-off mode for the remaining 2 days within the same week. The TEC value of this product is calculated by Canon on their own accord using TEC measurement procedure regulated in International ENERGY STAR Program.
Disclaimer
You need to install ink bottles of all colours whether you perform black and white printing or colour printing. If any of the ink bottles is not installed, an error occurs and you cannot perform printing.
Even when black-only or grayscale printing is selected, depending on the printing material and driver settings used, colour inks might still be consumed when printing. When the remaining ink level of any ink tank falls below the lower limit line, Canon recommends that you refill that ink bottle with the corresponding colour of ink.
During the initial printer setup, a certain amount of ink is used to fill the print head's nozzles with ink. Therefore, the page yield of the initial bundled set of ink bottles will be lower than that of the subsequent sets of bottles.
To keep printer's performance, Canon printer performs cleaning automatically according to its condition. When the printer performs cleaning, a small amount of ink is consumed.
In this case, all colours of ink may be consumed.
[Cleaning function]
The cleaning function helps the printer to suck air bubbles or ink itself from the nozzle and thus prevents print quality degradation or nozzle clogging.
The repairing parts for printers will be available five years after production is discontinued. Depending on your model, we may ask you to replace it with a new one, or one with almost the same performance as a maintenance service. In this case, it may be that you cannot use supplies or accessories for your model or the compatible OS will be changed.
The warranty term for details, contact a Canon-authorized sales representative in the country or region you live in. The warranty covers only the printer main body excluding consumables such as print media and ink / ink bottles even during the warranty period.
To obtain good printing quality, use up ink within six months after opening.
Please take note that if the printer fault or breakdown is due to the usage of non-genuine inks, repair charges are applicable even if the claim is within the warranty period.
Using non-genuine inks may affect the printer's performance and / or the print quality. In some rare occasions, although there are no safety issues, using non-genuine inks has caused overheating of the print head and smoke emission from the print head due to the absence of an ingredient found in genuine ink. (Does not apply to usage of all non-genuine inks).
Depending on your terminal, such as a computer or a smartphone, or the operating system of your terminal, such as your computer or smartphone, the estimated ink level information or message displayed on the screen of your terminal may be different from the information or message displayed on the operation panel of the printer. Also, a part of the estimated ink level message displayed on the operation panel of the printer may not be displayed and / or may be displayed at a different point in time. Canon recommends that you use the information and message displayed on the operation panel of the printer as your reference. Note, however, that such information and message are displayed items serve only as a guideline information.
Information on Received Faxes

By default, received faxes will be printed immediately after they are received.
In addition, faxes will be stored in the printer’s memory automatically when they are received.
However, the printer’s memory has an upper limit on the number of faxes or subjects it can contain. When the amount of stored fax reaches the upper limit of the printer’s memory, faxes stored latest will overwrite those stored earliest.

As long as paper is loaded, the printer will perform printing even when the ink remaining is insufficient. Therefore, in case ink remaining is low, printed faxes may be unclear due to blurring of ink. In such case if the amount of stored faxes has reached its upper limit of the printer’s memory, faxes stored in the printer’s memory will be deleted in order from the earliest. As a result, you may not be able to see faxes either using printed material or the printer’s memory.

Therefore, if you use the fax capabilities, make sure sufficient ink remains in the ink tank in advance. In addition, we recommend you refill the ink tank early so that ink does not become insufficient while fax printing is in progress. Visually inspect the remaining ink in the printer’s ink tank.
Moreover, we recommend you check printed pages immediately after faxes are received. If a fax remains in the printer’s memory, you can reprint it after refilling the ink tank.

If [Do not print] is selected for [Received documents] on [Auto print settings] under [FAX settings] on the operation panel of the printer, received faxes will not be printed immediately. Instead, faxes are stored in the printer’s memory automatically and you can select and print those stored from the printer’s memory. In this setting, the printer does not receive faxes if the printer’s memory reaches its upper limit. Thus, stored faxes are not overwritten automatically.
रु 15812 In stock
:Canon
Product:New
Generic Name:ink tank Printer
Model no.:G4010
Warranty:1 Year Canon India
Canon G4010 Color All in One Ink Tank Printer (PSC|F|A|W) Canon G4010 Color All in One Ink Tank Printer (PSC|F|A|W) Canon G4010 Color All in One Ink Tank Printer (PSC|F|A|W)
